Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO.
At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM.

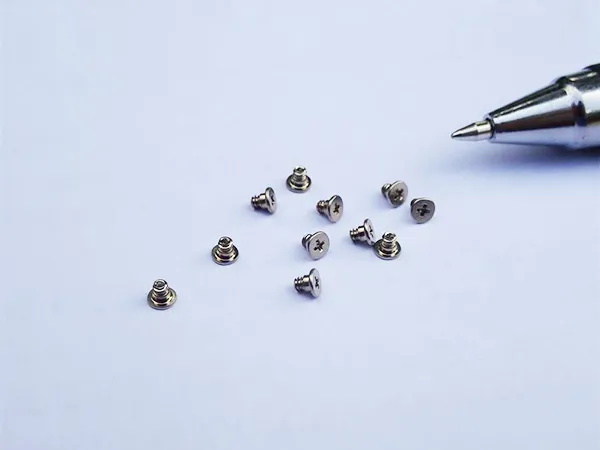

Name Specification: CHEESE HEAD MACHINE MICRO SCREW M1.4*L2.5
Reference standard: JIS/ANSI/DIN/BSI
Surface Treatment: DEGREASE
Salt spray time: over 48 hours / HIGH SALT SPRAY: 48H
Product Specifications: M1.4*PITCH0.3*L2.5MM
Nominal length: L2.5mm±0.1
Nominal diameter: 1.4mm±0.05
Origin: CHINA
Material: LOW CARBON STEEL
CHEESE HEAD MACHINE MICRO SCREW is a micro screw with a cylindrical head and a flat top. It is named because its head shape is similar to "cheese cylinder". This type of screw is widely used in precision machinery, electronic products, medical equipment and other fields. It has the characteristics of compact structure, firm installation, and suitable for high-precision connection.
2. Product features and professional data analysis
1. Head structure: Cheese Head
Feature description: The head is cylindrical, with a flat top and a diameter slightly larger than the screw, which is conducive to higher torque transmission.
Professional data:
Common head diameter (Head Diameter, D): 1.2mm ~ 6.0mm
Head height (Head Height, H): 0.4mm ~ 2.0mm
Advantages: Suitable for assembly of micro components with high torque requirements, improving fastening stability.
2. Thread type: Metric Fine Thread
Feature description: Fine thread provides higher self-locking ability and is suitable for anti-seismic and anti-loosening occasions.
Professional data:
Thread Diameter (M): M0.8 / M1.0 / M1.2 / M1.6 / M2.0, etc.
Pitch: 0.2mm ~ 0.4mm
Advantages: Suitable for high vibration environments, such as aerospace, automotive micro-motor components, etc.
3. Materials and surface treatment
Common materials:
Stainless steel (SUS304/SUS316): Strong corrosion resistance, suitable for medical devices.
Carbon steel (SCM435): High strength, suitable for load-bearing components.
Copper alloy (such as C3604): Good electrical conductivity, commonly used in electronic products.
Surface treatment method:
Nickel plating: anti-corrosion and anti-oxidation
Zinc plating: economical and practical
Black oxide: beautiful and rust-proof
Professional data:
Tensile strength: ≥ 600 MPa (carbon steel)
Surface roughness (Ra): 0.6μm ~ 1.6μm (for high-precision assembly)
4. Drive method: screw slot type
Common types include:
Phillips
Hex socket
Torx
Professional data:
Drive slot size is based on ISO standards, for example, PH000 is suitable for micro screws below M1.2
Advantages: avoid slipping and improve assembly accuracy.
III. Application scenarios
1. Consumer electronics industry
Applied in smart phones, tablets, laptops, cameras and other products to fix motherboards, screen brackets, battery modules, etc.
Typical case: M1.2×2.5 stainless steel cheese head screws used in iPhone motherboards.
2. Medical equipment
Applied to precision equipment such as micro-surgical equipment, insulin pumps, pacemakers, etc., requiring high cleanliness, corrosion resistance, and non-magnetic.
Material used: SUS316 stainless steel to ensure no biological reaction.
3. Optical equipment
Used for precision connection of internal components such as microscopes, telescopes, laser rangefinders, etc.
Requires the screw size accuracy tolerance to be controlled within ±0.01mm.
4. Aerospace/military industry
Micro radar modules, inertial navigation systems, etc. use such screws, which must meet the harsh environmental requirements of vibration resistance and high temperature resistance.
5. Watches and accessories
The connectors in Swiss watches and precision accessories must use micro fasteners, and have high requirements for appearance aesthetics
1. We have more than 20 years of experience in exporting to many countries for example America.Japan.Korea.Germany.France.England etc. In fact, we have 20 years of production experience. When the drawings are confirmed, we will provide customers with professional information to make product assembly smoother.
2. Our company have ISO9000.
3. We can give Proposing Solutions and help our customer to solve any fastner system problem.
4.We can reply you price within 2 hours.
5. We can produce samples for you in 5-7 days.
6. We can give you drawings within 2 hours.
7. Working with us can save your time and money.
8.We can confirm 100% quality in diameter and tolerance.
9.More than 90% are returned customers.
10.We not only produce and sell products ,we also can offer you help in China as friend .
11.I would like to help you to reach your dream in my ability ,give me chance is giving yourself chance.
Our logistics information exchange :
Are you factory ?
We are factory.We not only produce customized hardware we also produce test machine to check quality ourselves.This is our big advantage.
How long is your delivery time?
It is according to the product you need and quantity ,usually in 30 days
Can you provide samples ?
Yes, we can supply samples if we have stock.But if its customized , you need pay us mould fee, sample cost.
What drawings format do you need for production?
2D:PDF, CAD, JPG etc.3D: STP,IGS, STL, SAT,PRT,PT etc.
Can you produce according to the samples?
Yes,we can produce accordingto your samples
What can we do if you have any problem on your production line?
If you have any fastners problem on your production line,we will give you solutions quickly.
Dongguan Qisheng Metal Technology Co., Ltd. is a professional manufacturer of screws and nuts and other fastener products integrating R&D, production, processing and sales. The company is located in the famous manufacturing city in China-Dongguan City, Guangdong Province. The company covers an area of 3,000 square meters.
Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO. Our equipment is advanced. At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM. The materials used are stainless steel SUS304 /SUS410/SUS 430 /SUS620, etc., red copper H95, brass C2700, aluminum 6061, titanium TI 04, etc.
Our products can meet the environmental testing standards of the European Union-ROHS, the United States–California 65 standard, Japan-SONY00259 etc., and even more stringent testing standards. At present, our salt spray test standard can reach up to 2000 hours, and the surface hardness can reach up to HV2000.
Our business policy is to serve every customer with the highest quality and fastest speed.
Please feel free to contact us if necessary.
